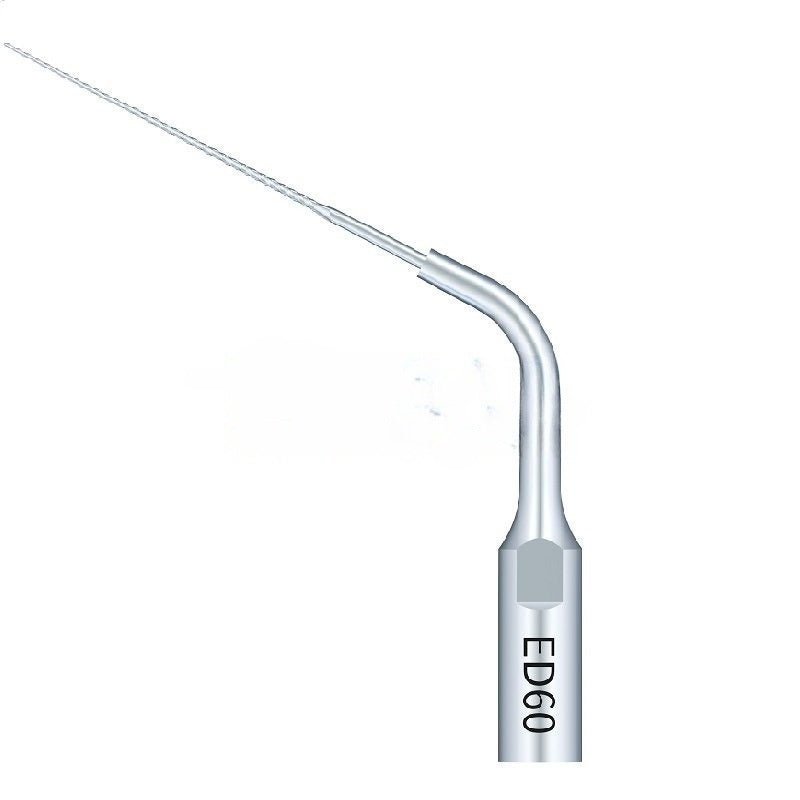

E60 Ultrasonic Irrigation Tip

Main Features

  • Minimally Invasive Irrigation: The working part is spiral but not sharp.

  • Anatomic Preservation: It has basically no cutting ability, which effectively avoids destroying the natural root canal shape.

  • Safety & Efficiency: Designed to bring efficient and safe cleaning operations to endodontic procedures.

Irrigating Operation (Step-by-Step)

  1. Placement: Put the irrigating tip into the root canal, trying to keep the tip unstressed (free-moving).

  2. Duration: Start the device for 20 seconds and then stop to clean the root canal.

  3. Frequency: Generally, a root canal needs to be irrigated 3 times for 20 seconds each.

  4. Service Life: The recommended service life for one tip is 30 ~ 50 root canals.

Important Notes & Safety

  • External Debugging: To ensure the service life of the tip, first perform external debugging. Start the foot pedal under Power Level 1 to ensure water output is normal.

  • Power Adjustment: Adjust the power within the limit (Levels 1~6) according to individual needs to ensure the water reaches the very end of the tip.

  • Fracture Prevention: To avoid instrument fracture, prevent the tip from getting stuck and vibrating while wedged tightly in the root canal.

Technical Settings

  • Mode: E (Endo Mode).

  • Power Graph: Shows a preference for lower to mid-range power. High power settings (MAX) are marked with an "X" to indicate they should be avoided to prevent breakage.

  • Irrigation: Ensure consistent water volume throughout the procedure
